Active 10 TREK GPS

Active 10 TREK GPS

You May Also Like

This easy-to-use, rugged, and reliable handheld GPS by Satmap is the perfect tool for navigating in the great outdoors. The Active 10 displays raster mapping, such as National Geographic's Topo! and Trails Illustrated map data (sold separately in an exclusive SD card format). View key statistics such as total ascents, distance, time, and speed—all on a clear 3 1/2" screen. The Active 10 has the most power options of any GPS and has a battery life of 100 hours when in hibernate mode.

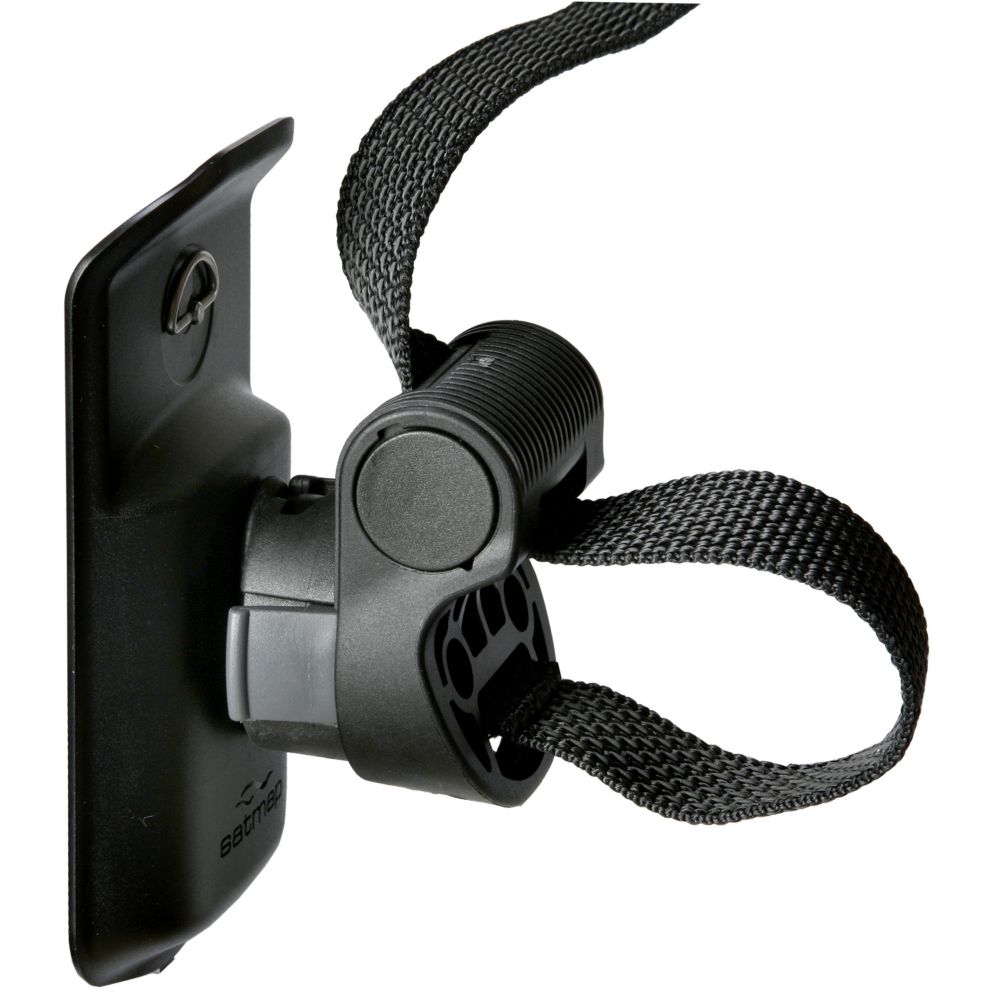

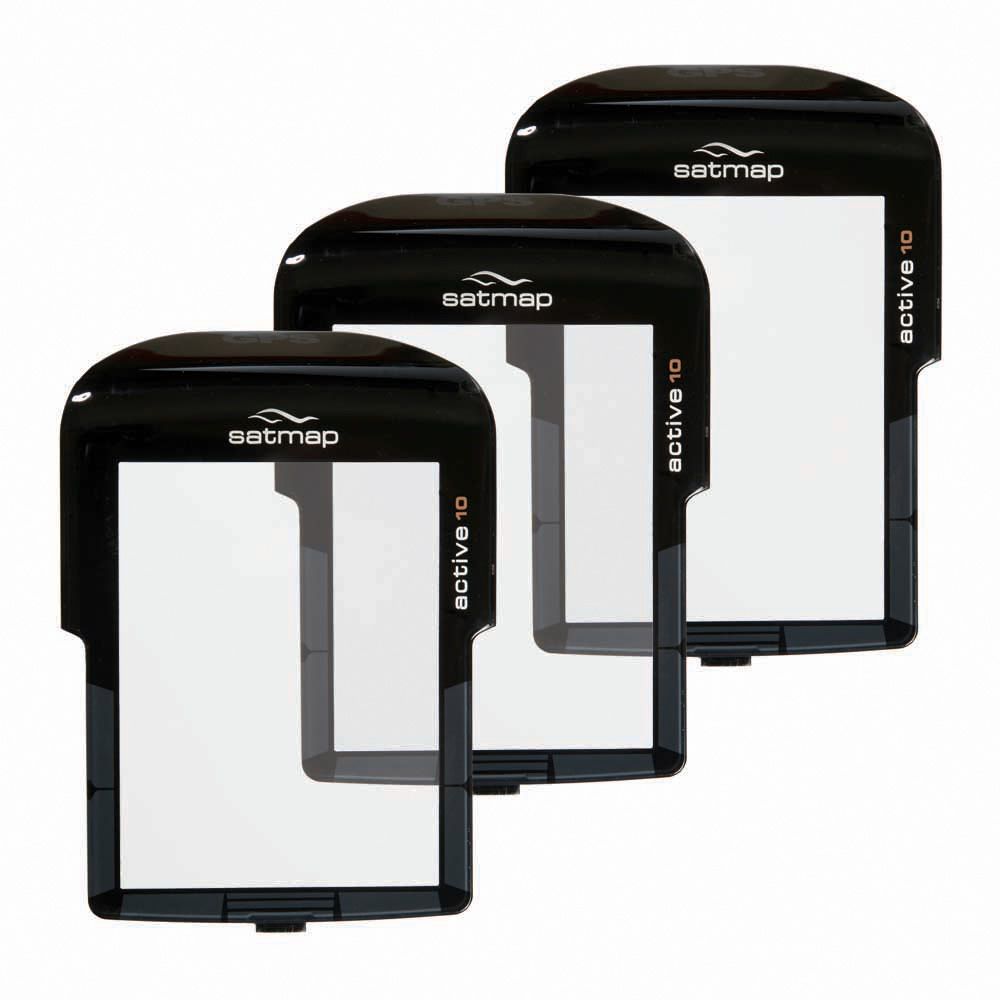

Also available (sold separately): three-pack of replacement screen covers (second thumbnail image from left) and bike mount (second thumbnail image from right)

Please note: The Active 10 TREK only accepts pre-loaded SD cards featuring select TOPO! and Trails Illustrated maps. See "Satmap GPS and TOPO! SD Cards" under "See Other Related Products" at the right for our current titles.

Not available for shipment outside of the U.S.

Approximately 3"W x 5"H x 1 1/2"D. 6.17oz (excluding batteries). 3 1/2" display with 320 x 240-pixel resolution.

Three power modes extend battery life: hibernate mode (100-120 hours), advanced power mode (16–24 hours), normal power mode (8-12 hours)

  • Toughened, impact resistant, weatherproof ABS casing
  • SiRF Star III GPS receiver (12 channel)
  • WAAS / EGNOS enabled
  • Integrated 18mm patch antenna
  • Custom Microsoft CE operating system
  • Dual function USB 2.0
  • Power input with data transfer via computer
  • 3 1/2" LCD TFT colour screen (320 x 240) with variable backlight
  • Day/night visible screen with red backlight option
  • Interchangeable battery back allows multi power options and bike or vehicle-mount options
  • Replaceable screen covers for added protection
Power source options:
  • 3 AA batteries (not included)
  • 2700mAh or 1500mAh Lithium Polymer rechargeable battery
  • 120v/240v mains supply
  • 12v DC vehicle (cigarette lighter)

  • Software features:
  • ARM 9 Processor
  • 64MB RAM
  • 512MB Flash Memory
  • In-built 2 axis electronic compass/GPS based compass/direction indicator


    by PowerReviews

    (based on 3 reviews)

    Ratings Distribution

    • 5 Stars



    • 4 Stars



    • 3 Stars



    • 2 Stars



    • 1 Stars



    Reviewed by 3 customers

    Sort by

    Displaying reviews 1-3

    Back to top

    (1 of 2 customers found this review helpful)


    Very good alternative outdoor GPS

    By Highland Rebel

    from California

    Verified Reviewer


    • Clear display
    • Intuitive to use
    • Large screen
    • NG maps
    • Rugged Construction


    • Map prices
    • Sometimes slow to get fix

    Best Uses

    • Hiking
    • Mountain biking
    • Useable with gloves

    Excellent GPS unit. Not the latest technology but still up there in terms of performance. It does take a bit of time to get an initial satellite fix when first powered on, but is very accurate and responsive when in use. The large screen makes for easy navigation. The NG maps are superb, though could become expensive if you need maps for multiple states. Battery life is reasonable with power save functions enabled. Contrary to the 'Features' listed on the NG website, the unit I received included both AA batteries and a 2700mAh LiPo rechargeable battery. Bonus! Overall I'm very pleased with the Active 10 Trek.

    (4 of 4 customers found this review helpful)


    Nat Geo Maps Excellent: GPS Fair

    By Mountain Man - Fenske

    from Copper Mountain, CO

    Verified Reviewer


    • Charging Alternatives
    • Ease of menu use
    • Good Compass
    • Map Detail
    • Power Alternatives
    • Satellite tracking
    • Sturdy design
    • Tracking Dots


    • Cost
    • Lithium Battery Time
    • Log Data Print Size
    • Three AA Battery Pack

    Best Uses

    • Casual recreation
    • Designated FS Trail Hikes
    • Short hikes

    I hike Eagles Nest Wilderness Area, Holy Cross Wilderness Area, and Fourteeners year-round. Previous GPS: Garmin eTrex drowned in rain; Magellan maps were crude and vanished one day. The Active 10 interests me because it offers accurate Nat Geo maps with FS trail identification. When I am off-trail, I want to know how to locate trail or retrace my steps in the dark. I was disappointed that after only 6 hours of trudging through snow, off-trail, to Holy Cross City, the Lithium battery went dead. Being half-way out on a hike, a dead GPS is not good. Also, I cannot read any of the log data without reading glasses. Font size is far too small.

    (13 of 13 customers found this review helpful)


    Not enough info

    By Cowboy Nick

    from Avon, IN


    • Battery life seems good
    • Screen size good


    • Cannot use ngs TOPO map
    • Misrepresented in ad
    • Must use their sd cards

    Best Uses

      I purchased Satmap in response to an email from NGS. The info I found did not indicate that only preprogramed SD cards would work. I could not download maps from NGS TOPO! cds. The available SD cards do not include my area of the country, so I could not use the Satmap. I returned it to NGS with no questions. I appreciated their return policy, but I wish I could have kept it. I will look out for the maps on SD for the midwest and perhaps purchase the satmap at a later date if they become available.
