Galileo Thermometers


17-inch Galileo Thermometer







You May Also Like

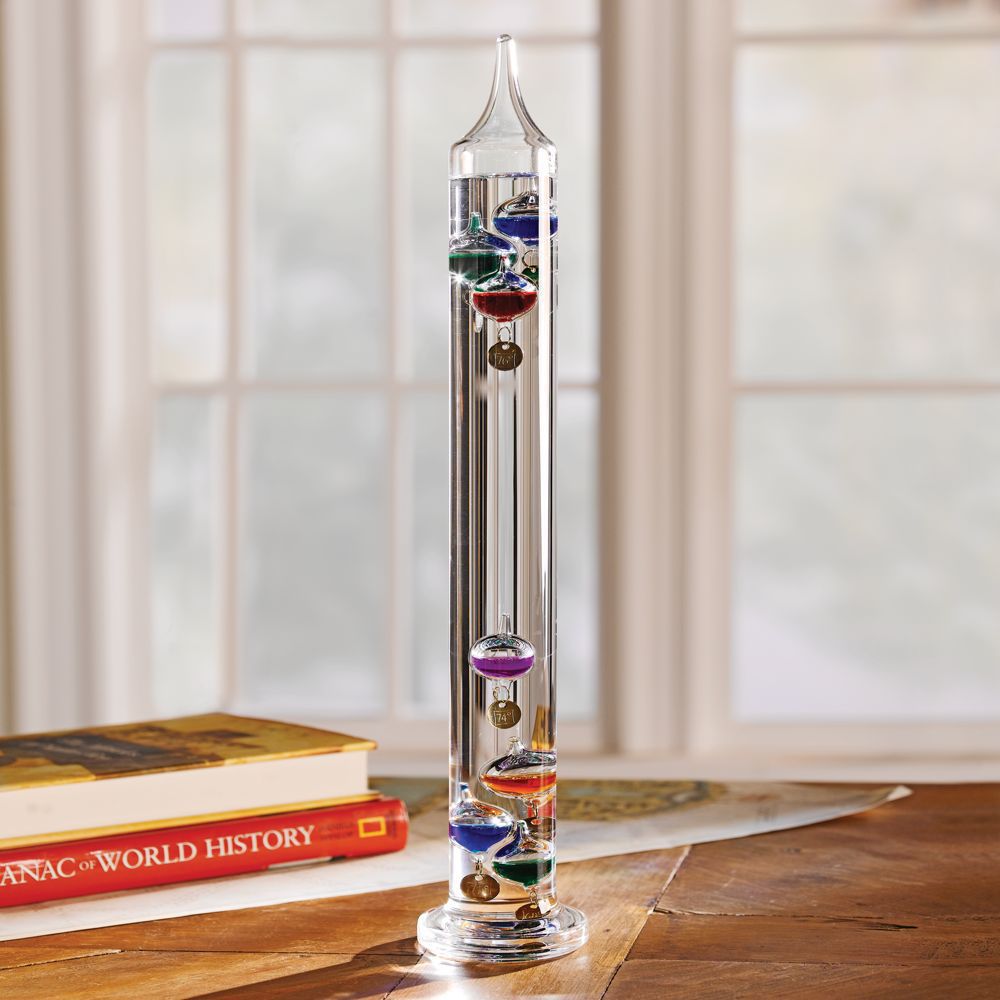

Art meets science in this colorful glass thermometer. In 1593, Italian physicist Galileo invented a thermometer based on the principles of relative density. Individually calibrated weights containing a mixture of ethanol and dye float in a sealed tube with de-aromatic oil where they rise and fall with the temperature and the resulting changes in liquid density.


Not available for shipment outside of the 48 contiguous United States. Expedited shipping is not available for these items.


Displays temperatures in Fahrenheit in 2° increments from 68° to 80°. Accurate to within 2 degrees. Small: 17"; Large: 21".


In the 2nd century B.C., Greek scholar Archimedes discovered the law that states any object in a fluid displaces its own weight of fluid. He went a step further when he described the principle of buoyancy—that if an object is more dense than an equal volume of water, it sinks; if it's less dense, it floats. A simplified way of understanding density in this example is that it's the relative "heaviness" of objects of the same volume—a marshmallow is less dense than a marble of the same size and shape.


Almost 2,000 years later, Italian scientist Galileo discovered that a liquid's density is affected by changes in temperature. As temperatures rise, a liquid's density decreases. This means that objects that float in room temperature water would sink as the water is heated. He applied his discovery to create what is now known as a Galileo thermometer.


In a Galileo thermometer, sealed glass bubbles filled with a mixture of ethanol and dye have weights attached that are marked with different degrees Fahrenheit. The bubbles are suspended in a tube of de-aromatic oil. The weights give the bubbles different densities from each other and from the liquid in the tube.


When the atmospheric temperature rises, the density of liquid in the tube decreases, which changes the relative density of the glass bubbles. So, as the temperature increases, the liquid's density decreases, which means more bubbles will sink because they are now more dense than the surrounding liquid. At the highest temperatures, the lightest (least dense) bubble will finally sink. When temperatures drop, the opposite happens and more bubbles rise.


To read a Galileo thermometer, look at the lowest hanging bubble in the middle of the tube—the one that is not entirely sunk, nor entirely floating at the top. This bubble is in equilibrium with the surrounding liquid, and its tag will tell the current temperature.
